VentX Recurve Scope
Tax excluded. Shipping calculated at checkout
Product Details
Features
- Removable pin ring indexes in eight positions.

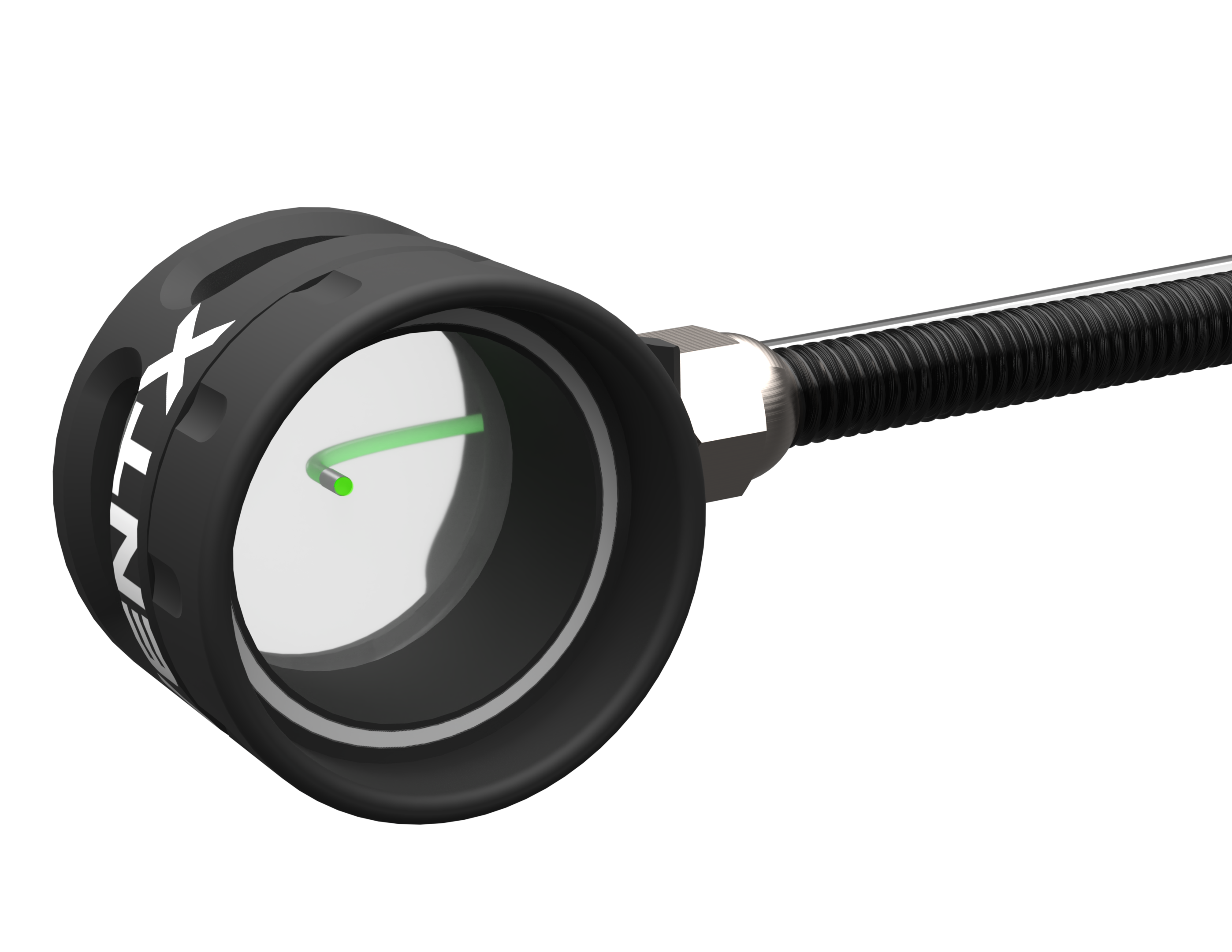

- Utilizes Clear Targets X-Zone polycarbonate lenses with zero magnification.
- Fiber channel directs fiber out of the scope housing and along the threaded rod for maximum light collection.
- Three large slots around the diameter of the scope let in ambient light to illuminate fiber and dots.
- Interchangeable sunshades enable further customization and the option of a white centering ring with the 1-step shade.
- Included aperture reducers restrict the inside diameter to create a smaller field of view.
- Choose between the included pin, center-drilled lens, and a blank lens with dots to create the optimal sight picture.
- High grade steel 8-32 threaded rod with a black oxide coating offers a durable mounting solution.
- Proudly designed, manufactured, and assembled in the USA.
Tech Specs
- 14.5mm (0.57") Inside diameter
- 20mm (0.78") Outside diameter
- 0.46 ounces (13.2 grams) total scope weight
- 8-32 x 3" threaded rod
- 16.7mm (0.660") lens diameter
- Three aperture reducers: 0.375" ID, 0.438" ID, and 0.500" ID
- Dot kit with 1, 1.25, 1.5, 1.75, and 2mm dots in black, orange, and blue
What's Included
Each VentX Package comes with:
- VentX scope body
- MDR Sunshade
- 1-Step Sunshade
- Pin Ring
- Clear Targets X-Zone Drilled Lens
- Clear Targets X-Zone Non-Drilled Lens
- Fiber Holder
- Black, blue, and orange dots (1, 1.25, 1.5, 1.75, and 2mm)
- Green and orange fiber
- Aperture reducers (.375", .438", and .500" ID)
- 8-32 x 3" threaded rod
- Removable pin ring indexes in eight positions.
- Utilizes Clear Targets X-Zone polycarbonate lenses with zero magnification.
- Fiber channel directs fiber out of the scope housing and along the threaded rod for maximum light collection.
- Three large slots around the diameter of the scope let in ambient light to illuminate fiber and dots.
- Interchangeable sunshades enable further customization and the option of a white centering ring with the 1-step shade.
- Included aperture reducers restrict the inside diameter to create a smaller field of view.
- Choose between the included pin, center-drilled lens, and a blank lens with dots to create the optimal sight picture.
- High grade steel 8-32 threaded rod with a black oxide coating offers a durable mounting solution.
- Proudly designed, manufactured, and assembled in the USA.
- 14.5mm (0.57") Inside diameter
- 20mm (0.78") Outside diameter
- 0.46 ounces (13.2 grams) total scope weight
- 8-32 x 3" threaded rod
- 16.7mm (0.660") lens diameter
- Three aperture reducers: 0.375" ID, 0.438" ID, and 0.500" ID
- Dot kit with 1, 1.25, 1.5, 1.75, and 2mm dots in black, orange, and blue
Each VentX Package comes with:
- VentX scope body
- MDR Sunshade
- 1-Step Sunshade
- Pin Ring
- Clear Targets X-Zone Drilled Lens
- Clear Targets X-Zone Non-Drilled Lens
- Fiber Holder
- Black, blue, and orange dots (1, 1.25, 1.5, 1.75, and 2mm)
- Green and orange fiber
- Aperture reducers (.375", .438", and .500" ID)
- 8-32 x 3" threaded rod

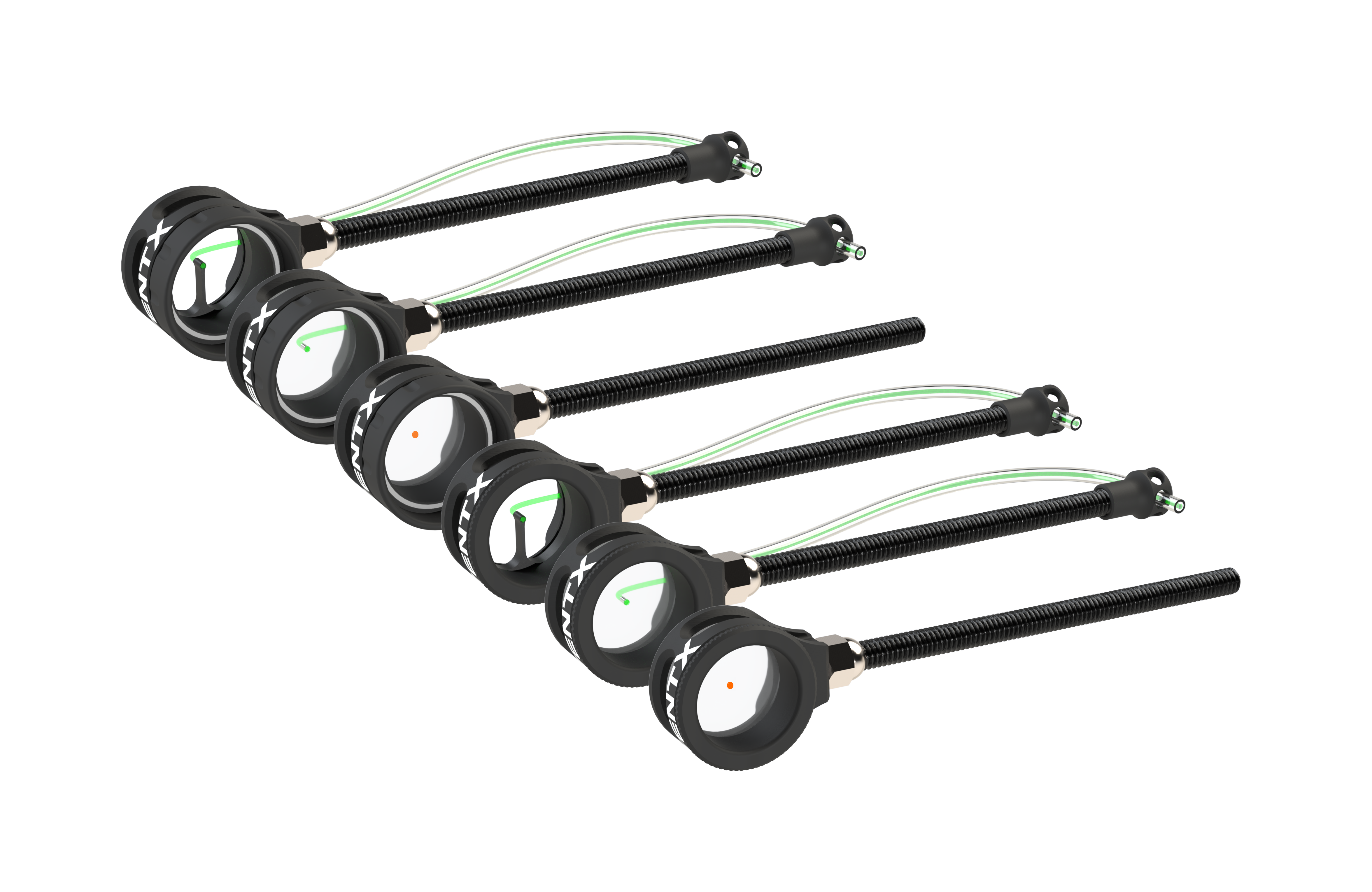

198+
Unique combinations
A variety of sunshades, lenses, dots, fiber colors, and aperture reducers enable the user to configure the scope to suit their needs.

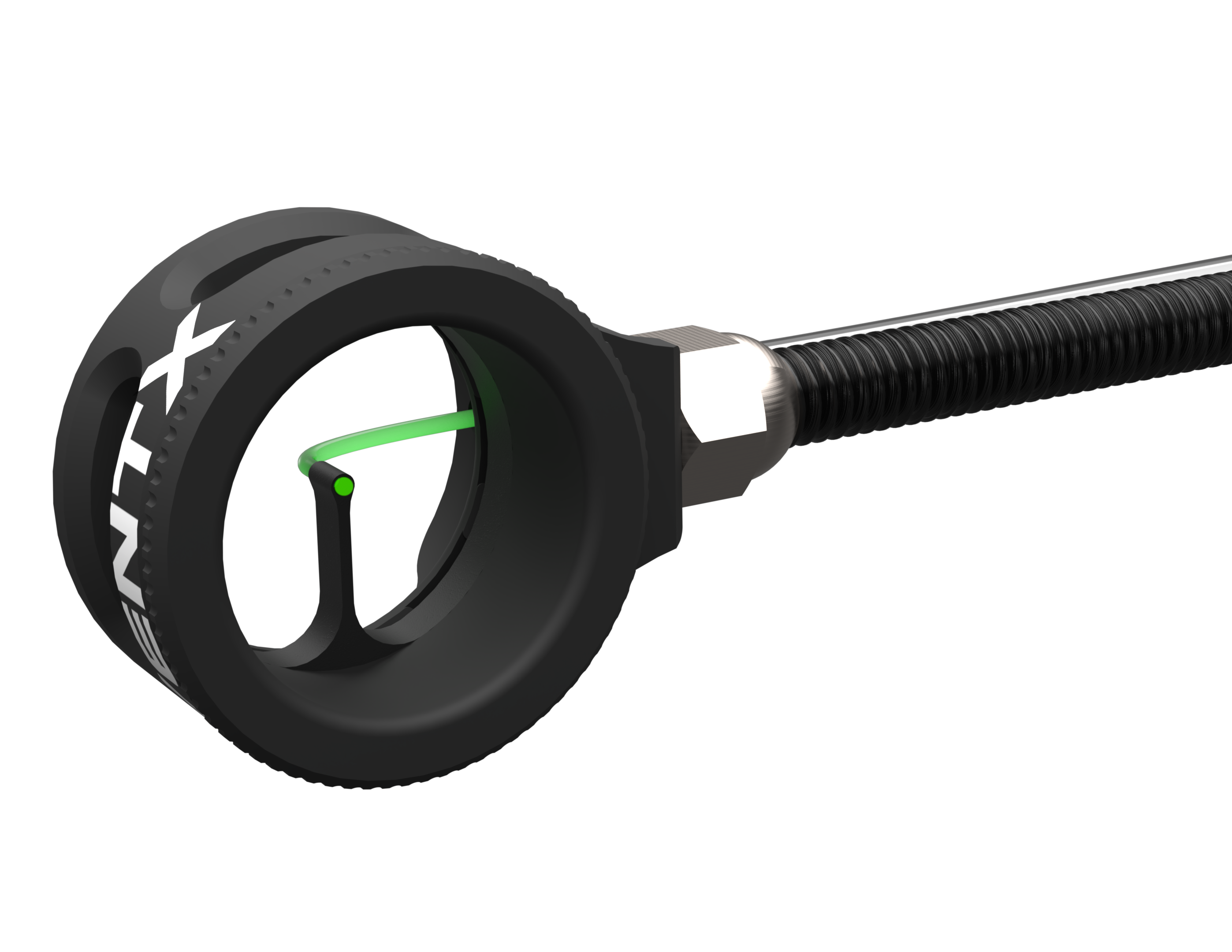

8
Pin Positions
A pin ring indexes in eight different pin positions while ensuring your pin stays in center.
13.2 Grams
TOTAL SCOPE WEIGHT
Tons of options and ease of use don't have to weigh you down. The VentX was made to be featherlight.

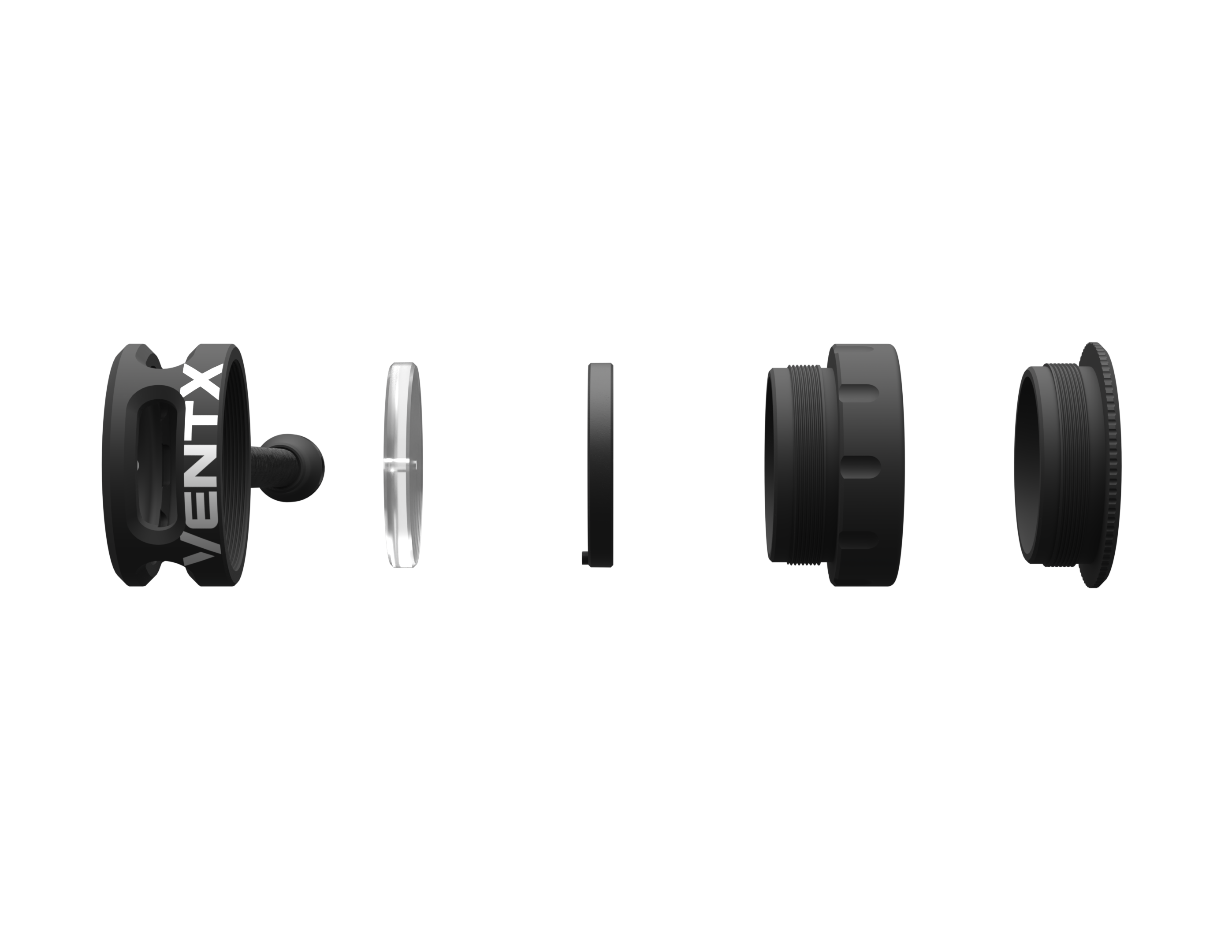

Adaptable Design

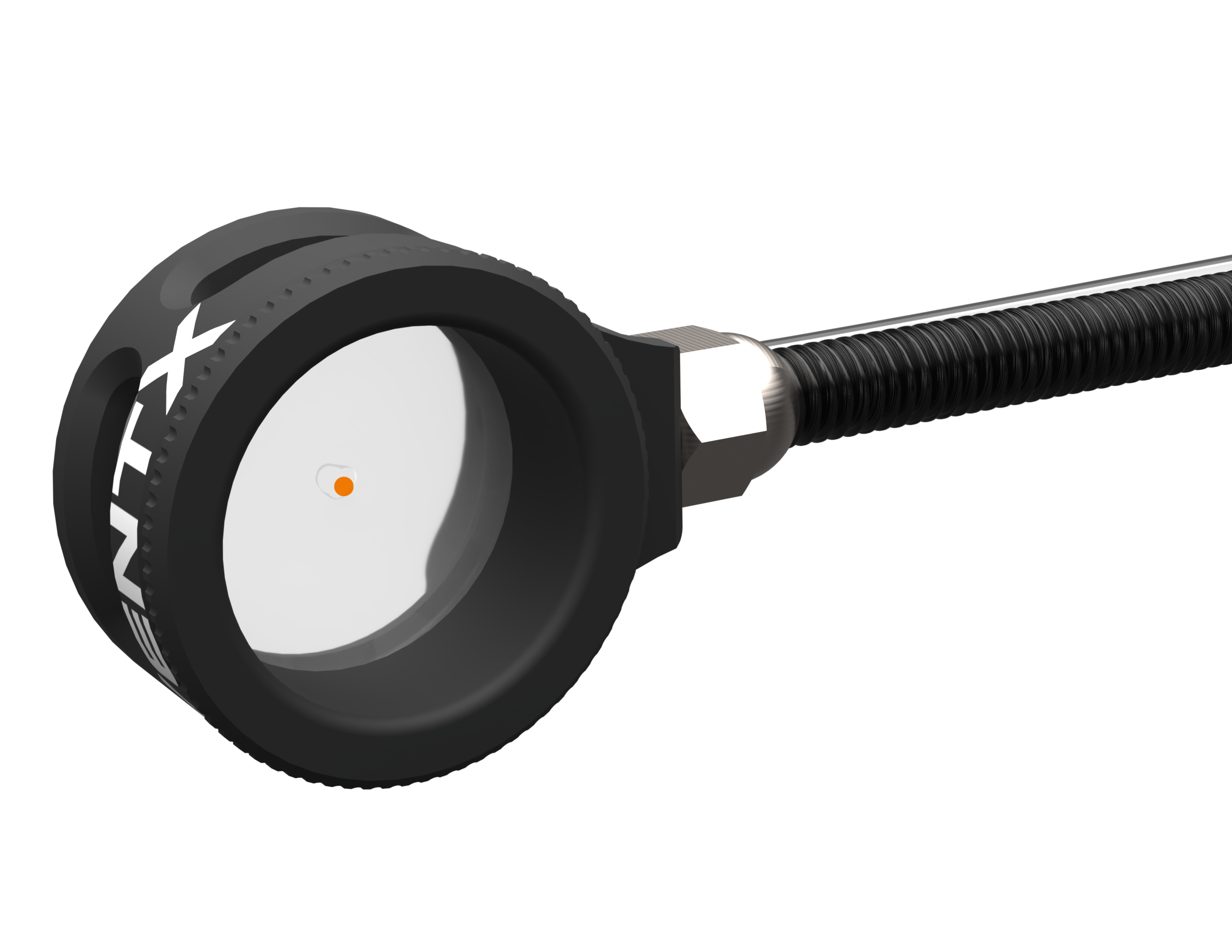

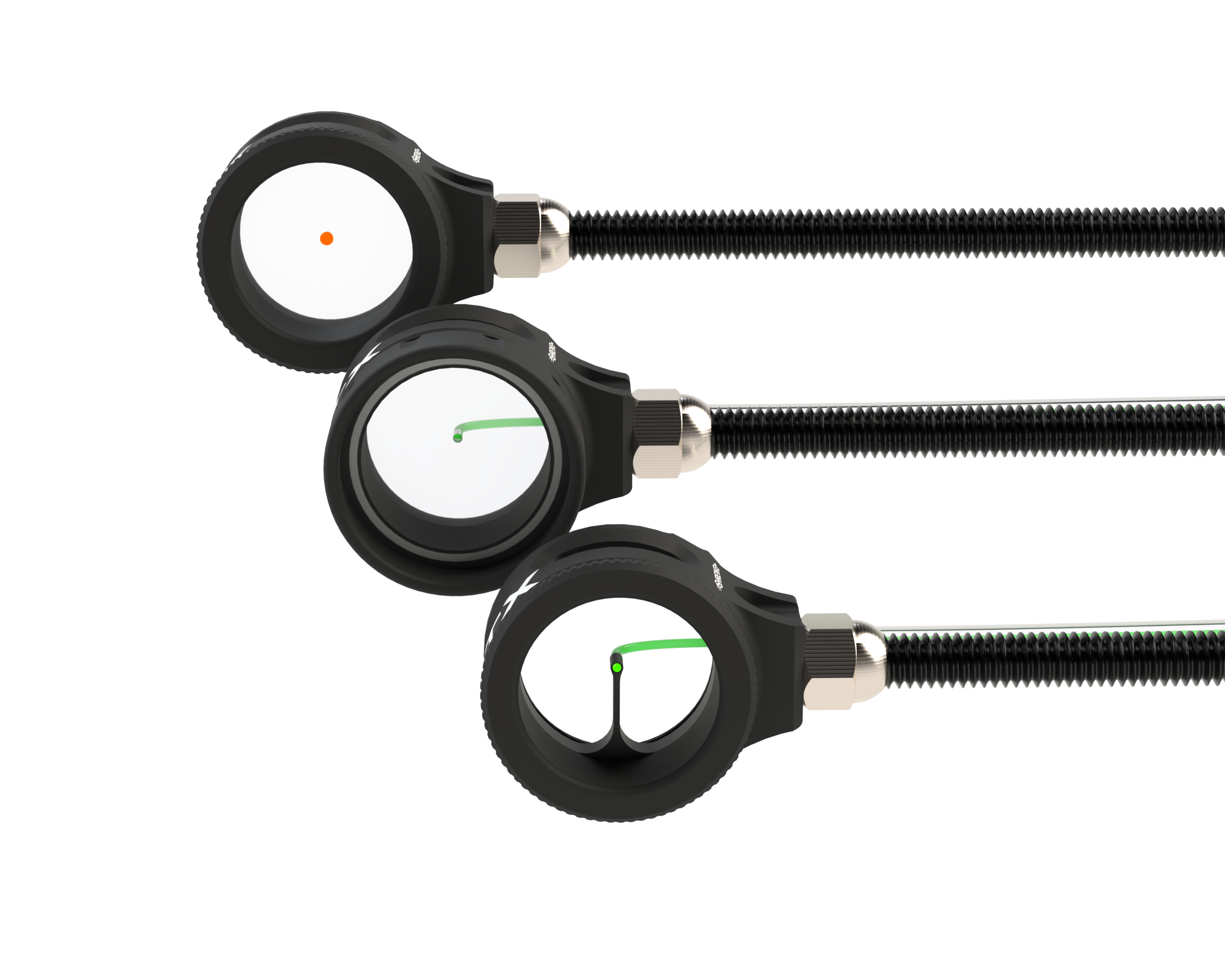

Effortlessly swap between a center-drilled lens, pin ring, or dot in a matter of seconds. Every VentX kit comes with all the options to ensure optimal target acquisition in any environment.
Max Lumens
FITA compliant and designed to shine. The integrated fiber channel and vented scope body allow maximum light transmission to ensure a bright aiming point that's easy to acquire.
Vented Scope Body
Three large vents encircle the scope body, on plane with the lens mounted within the scope, further illuminating any dot or center-drilled lens.

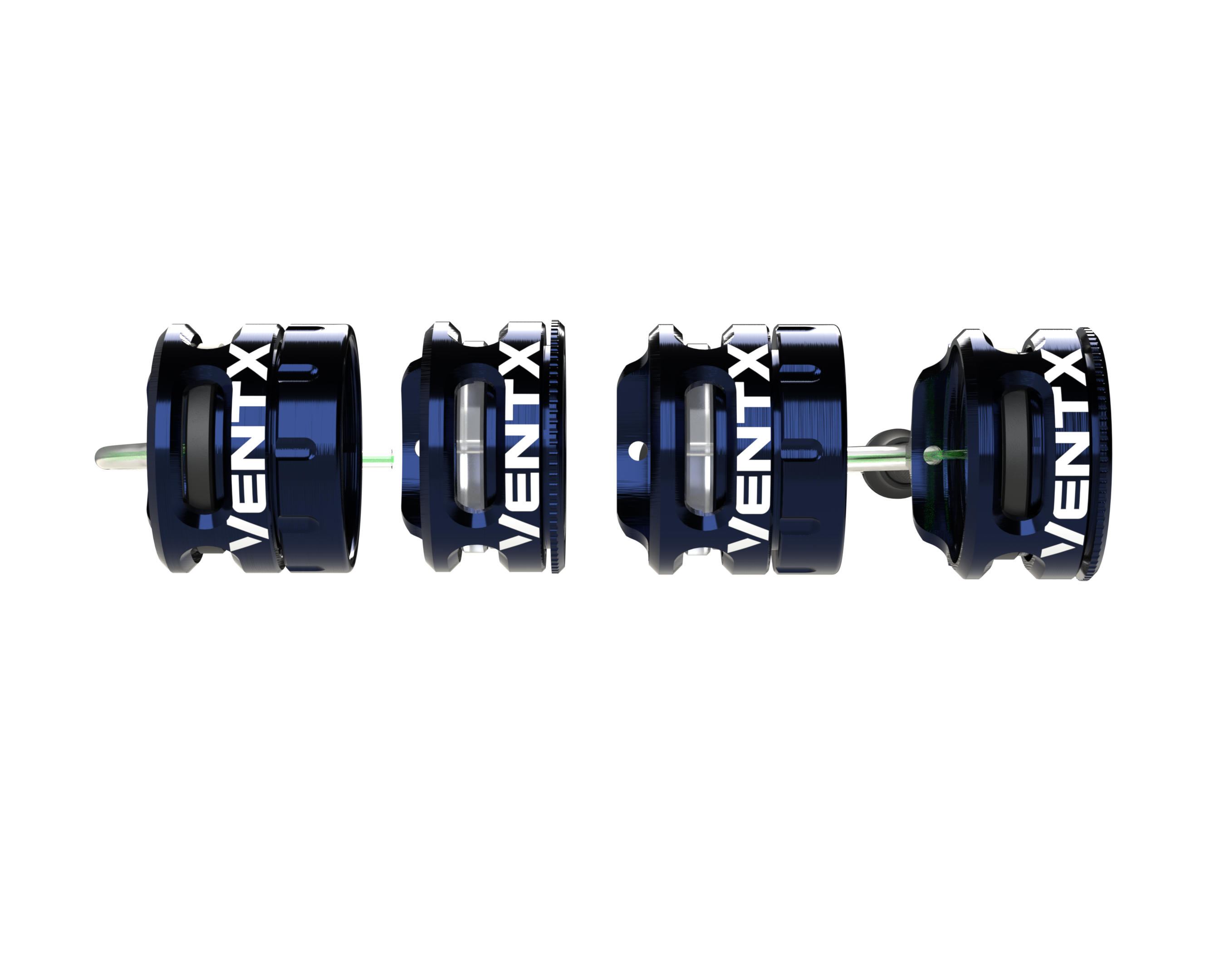

Make it yours
The VentX is a complete package and includes multiple sunshades, lenses, dots, aperture reducers, and a pin.
Indexable
The VentX pin ring features a machined lug that locates in eight positions (every 45°) within the scope housing.

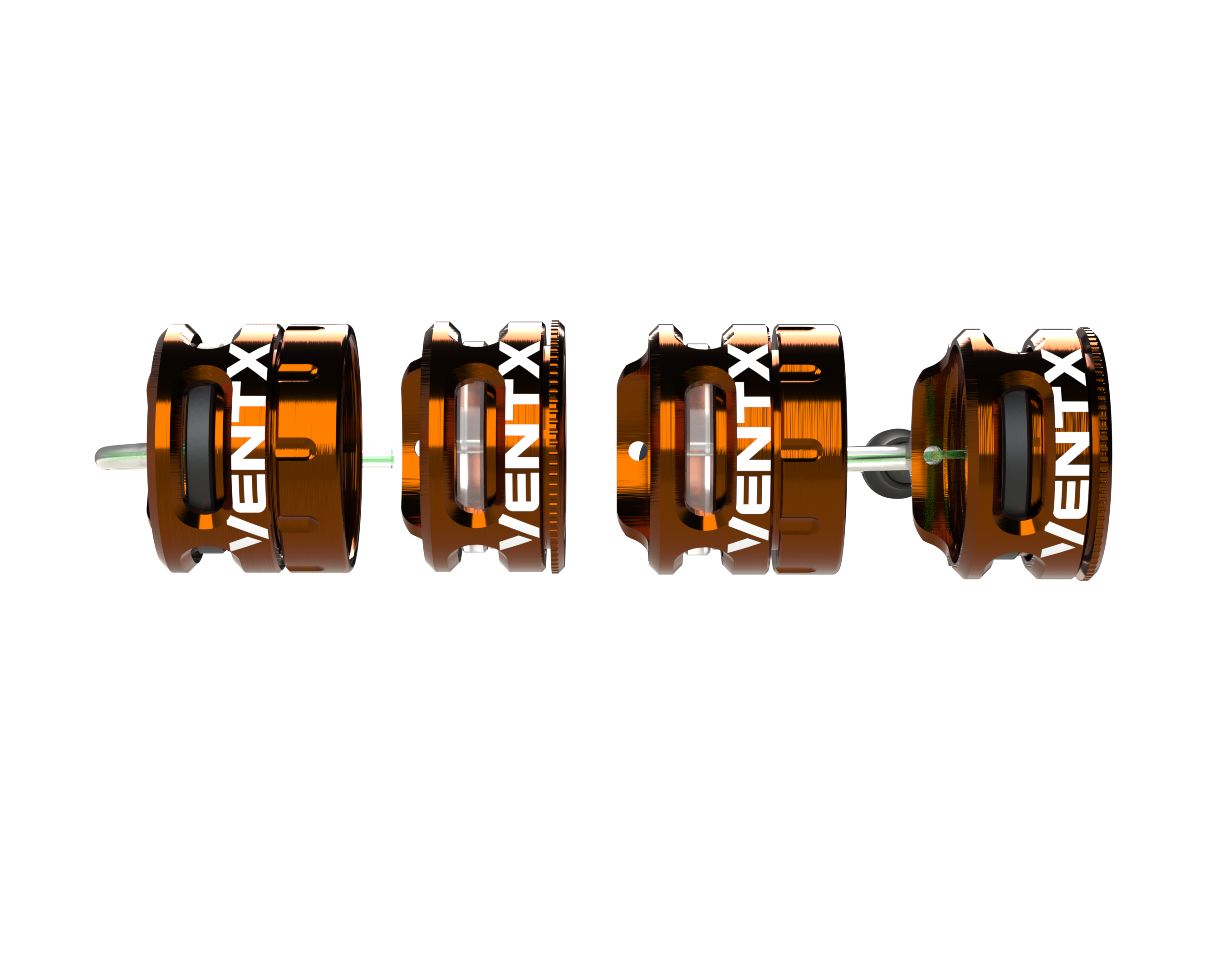

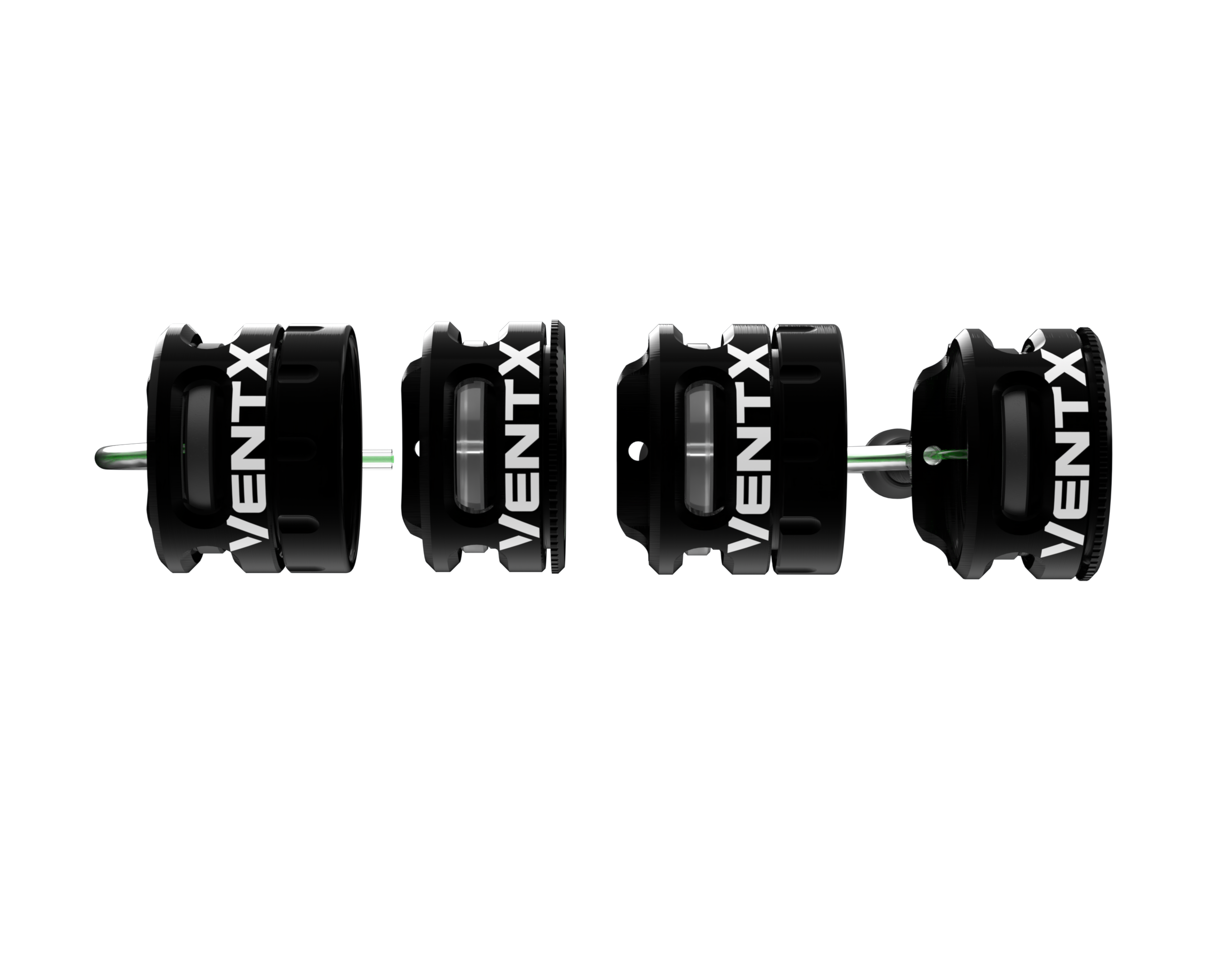

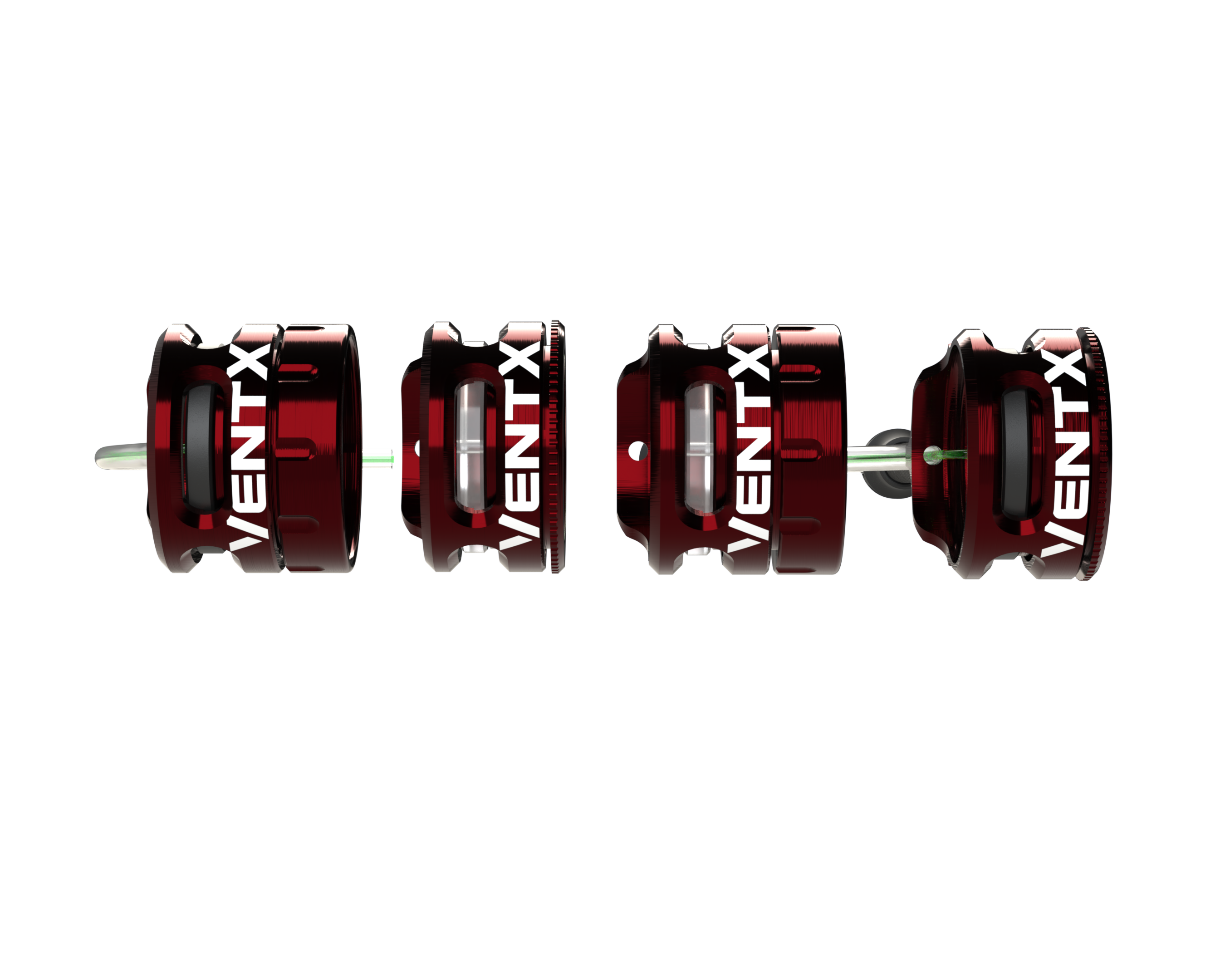

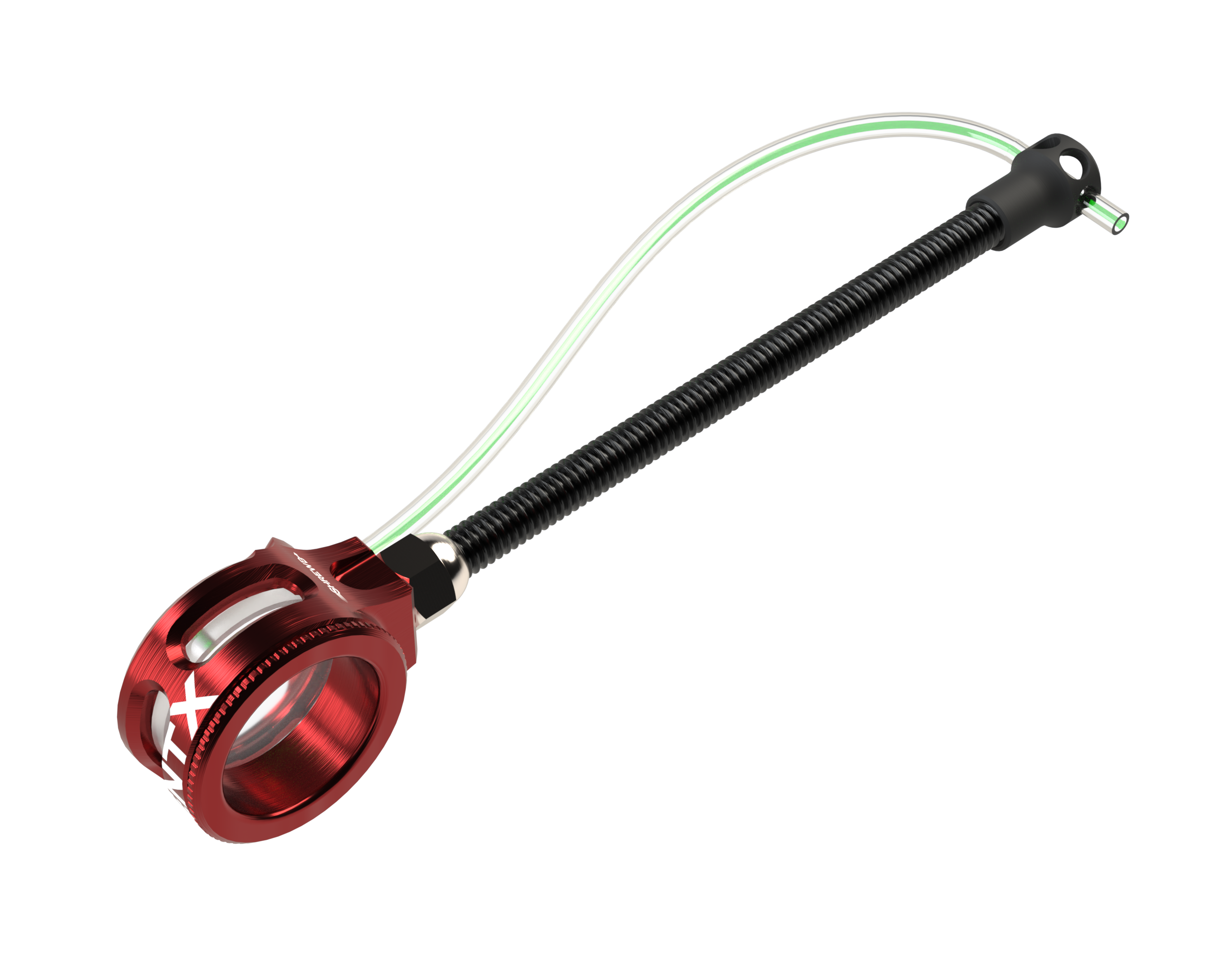

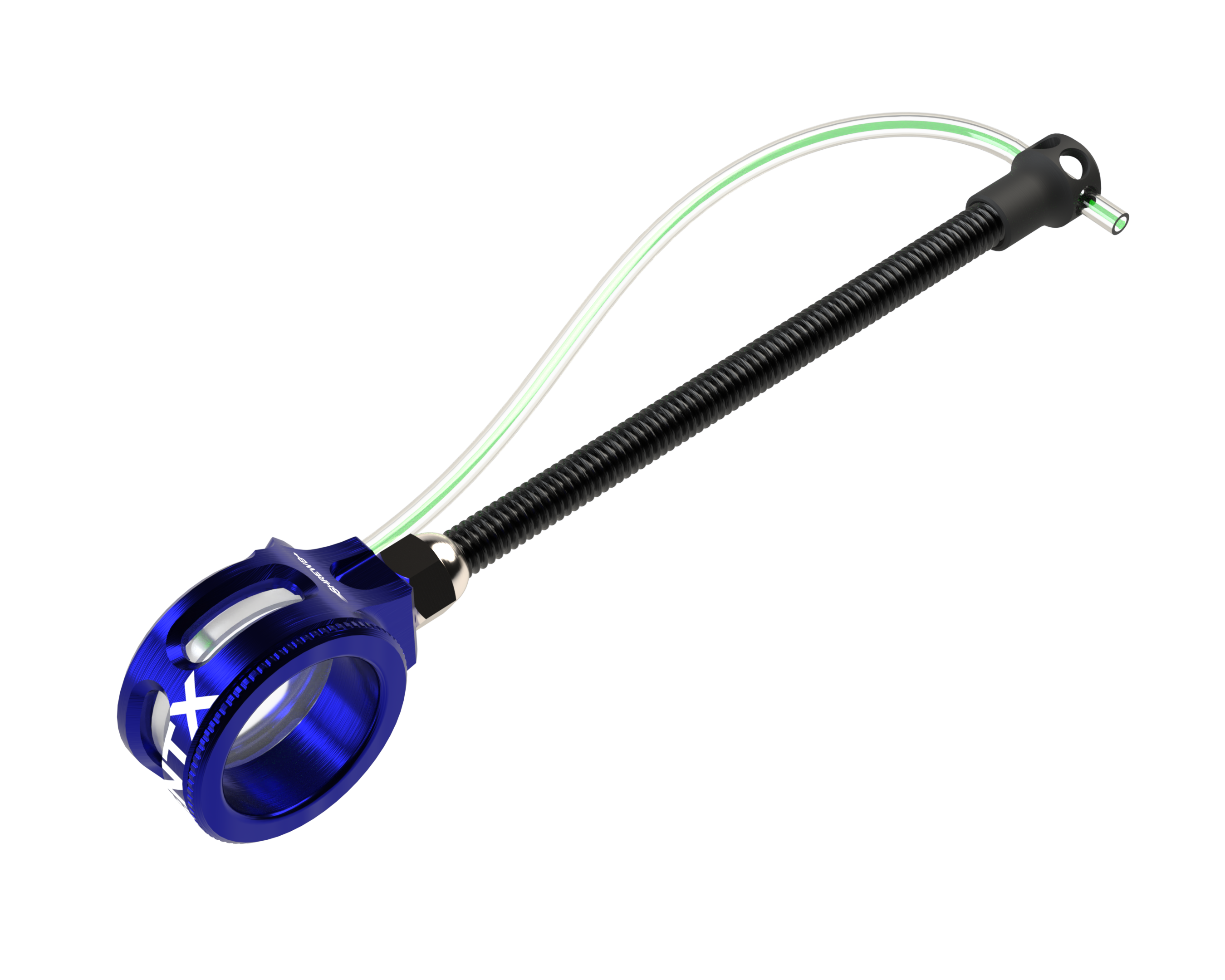

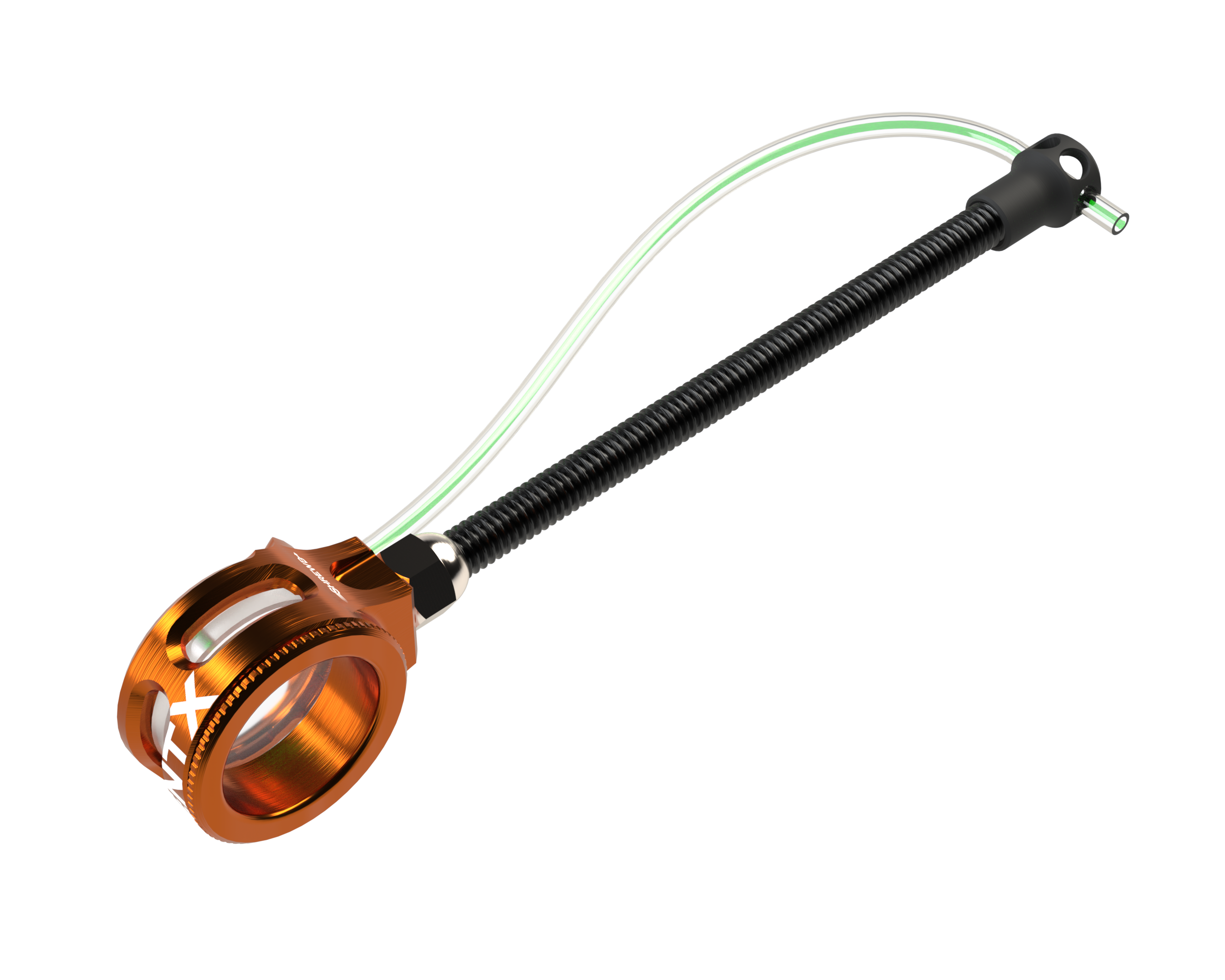

Color Coordinated

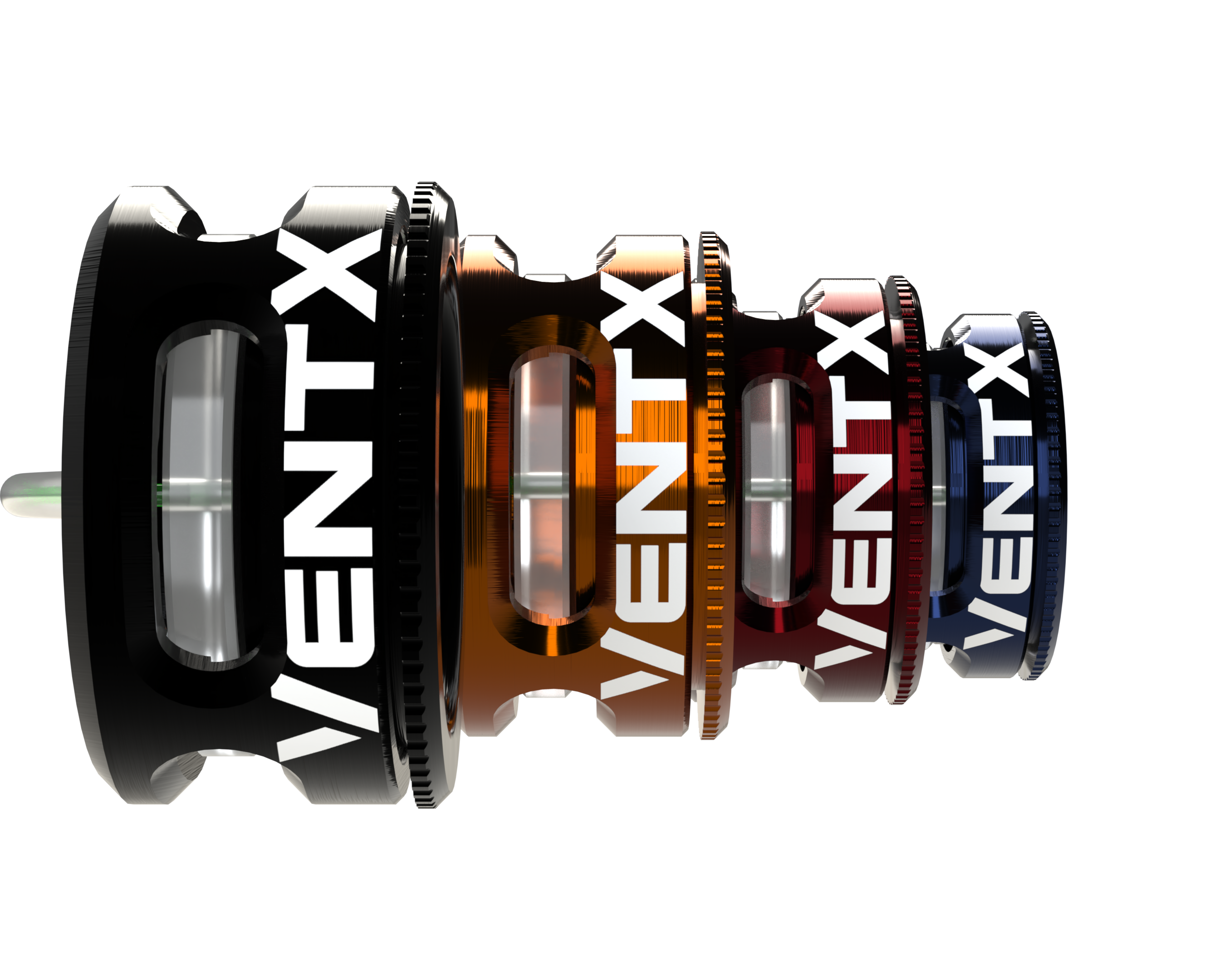

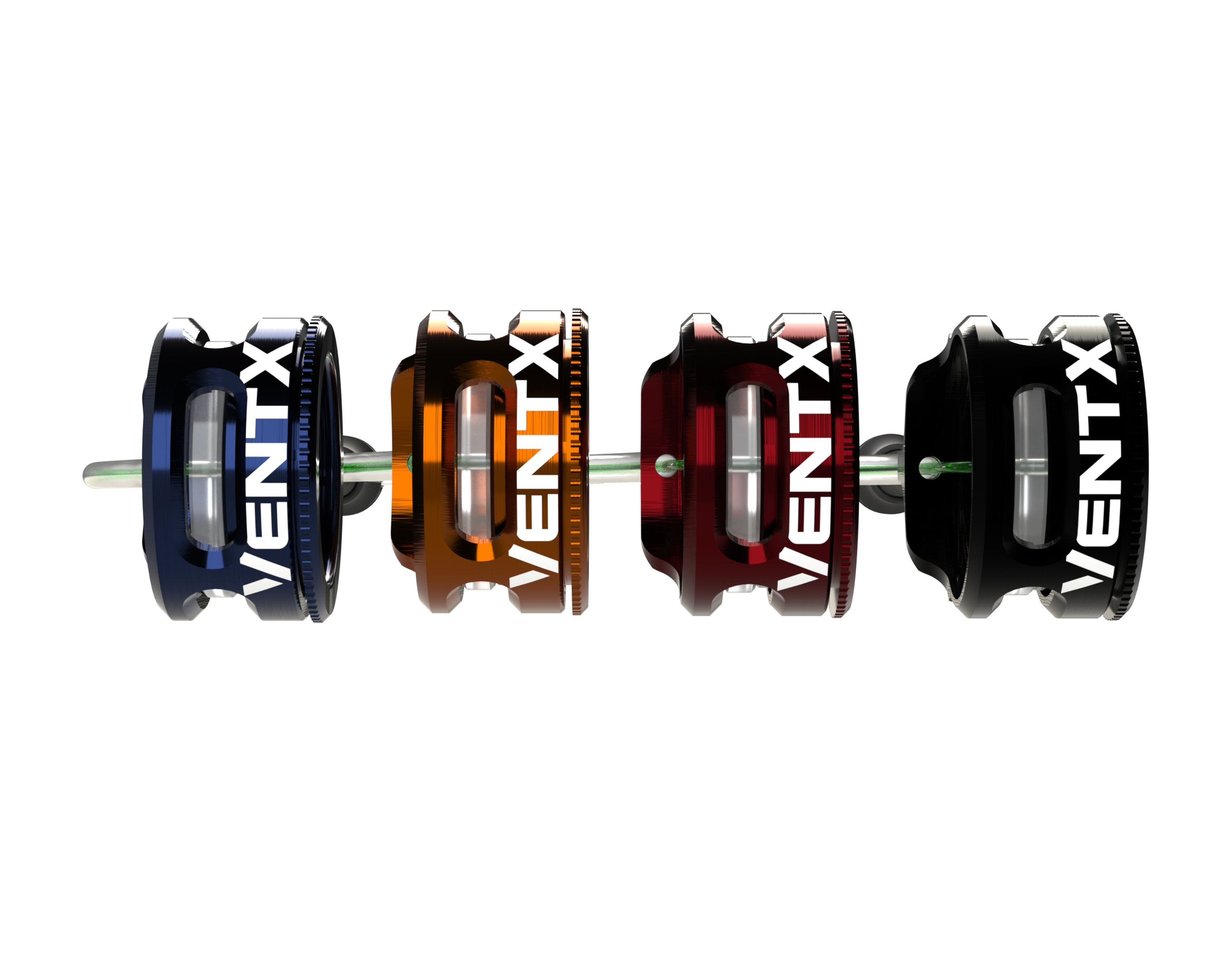

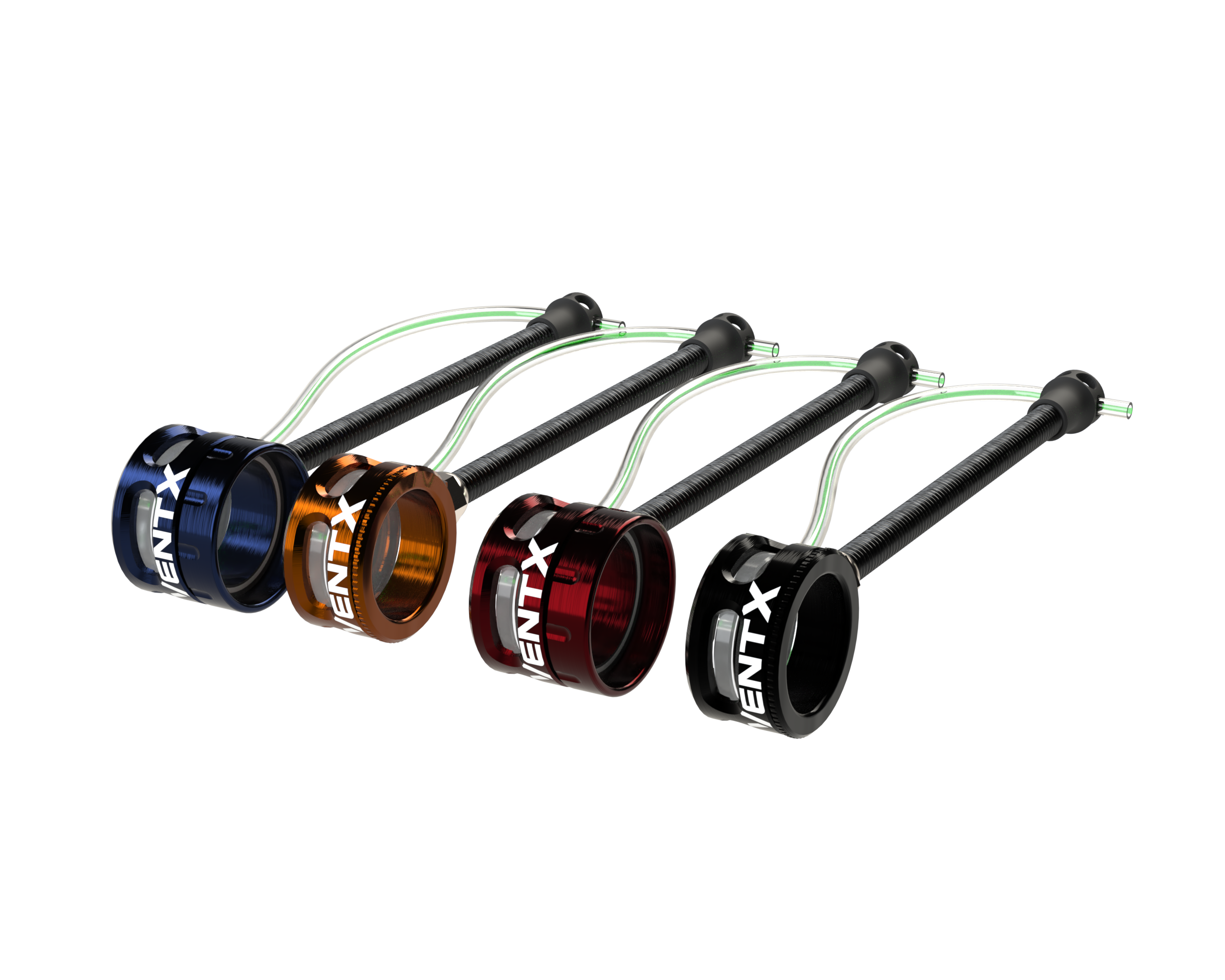

Keep things subtle with the classic black or go bold and make a statement with the bright color options available for the VentX.

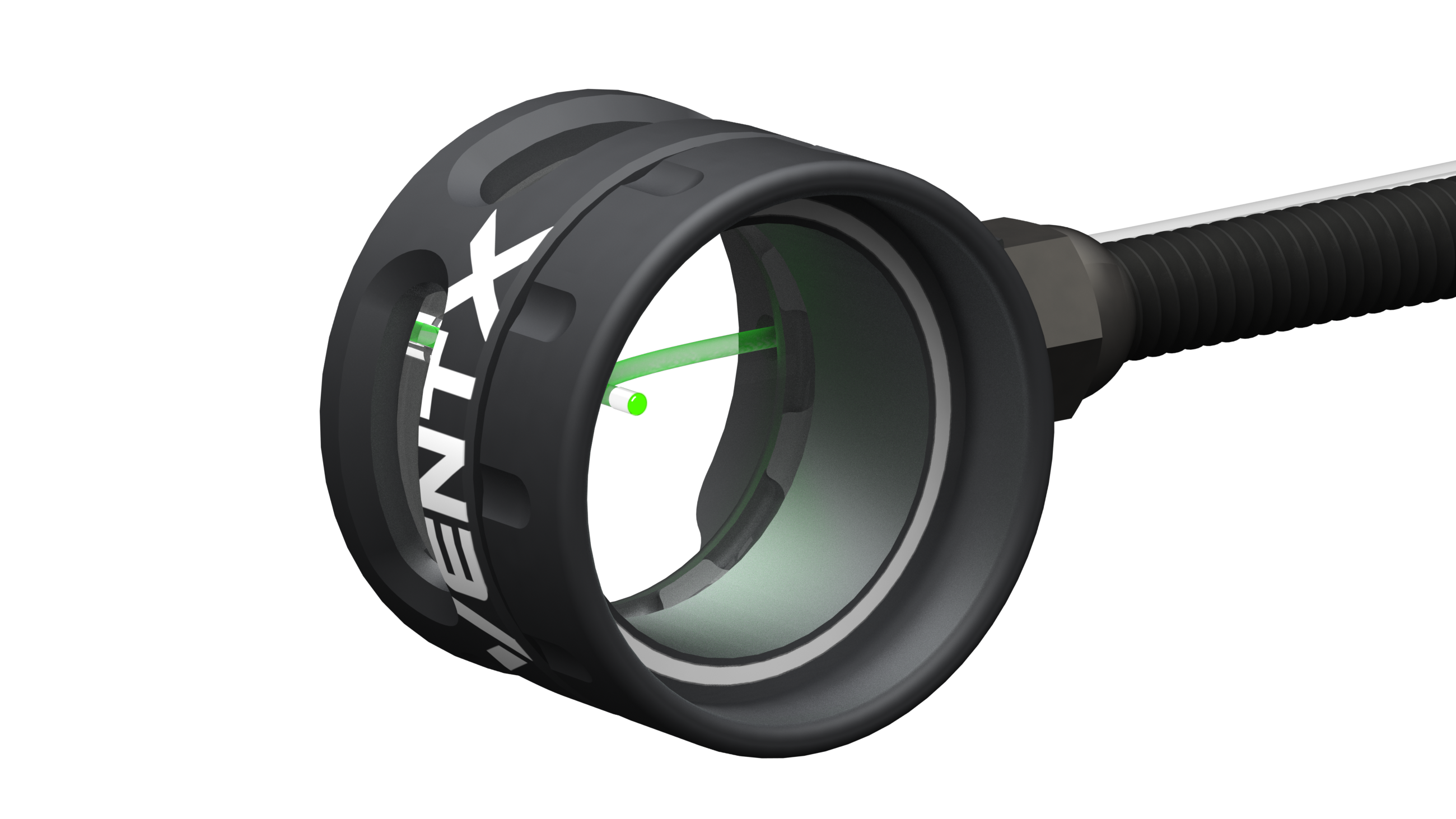

Vented Scope Housing
Large vents surrounding the scope body allow light in to illuminate center-drilled lenses, fiber, and dots.
Fiber Retainer
White centering rings are laser etched into the MDR and 1-step sunshades for a durable and vivid alignment aid.

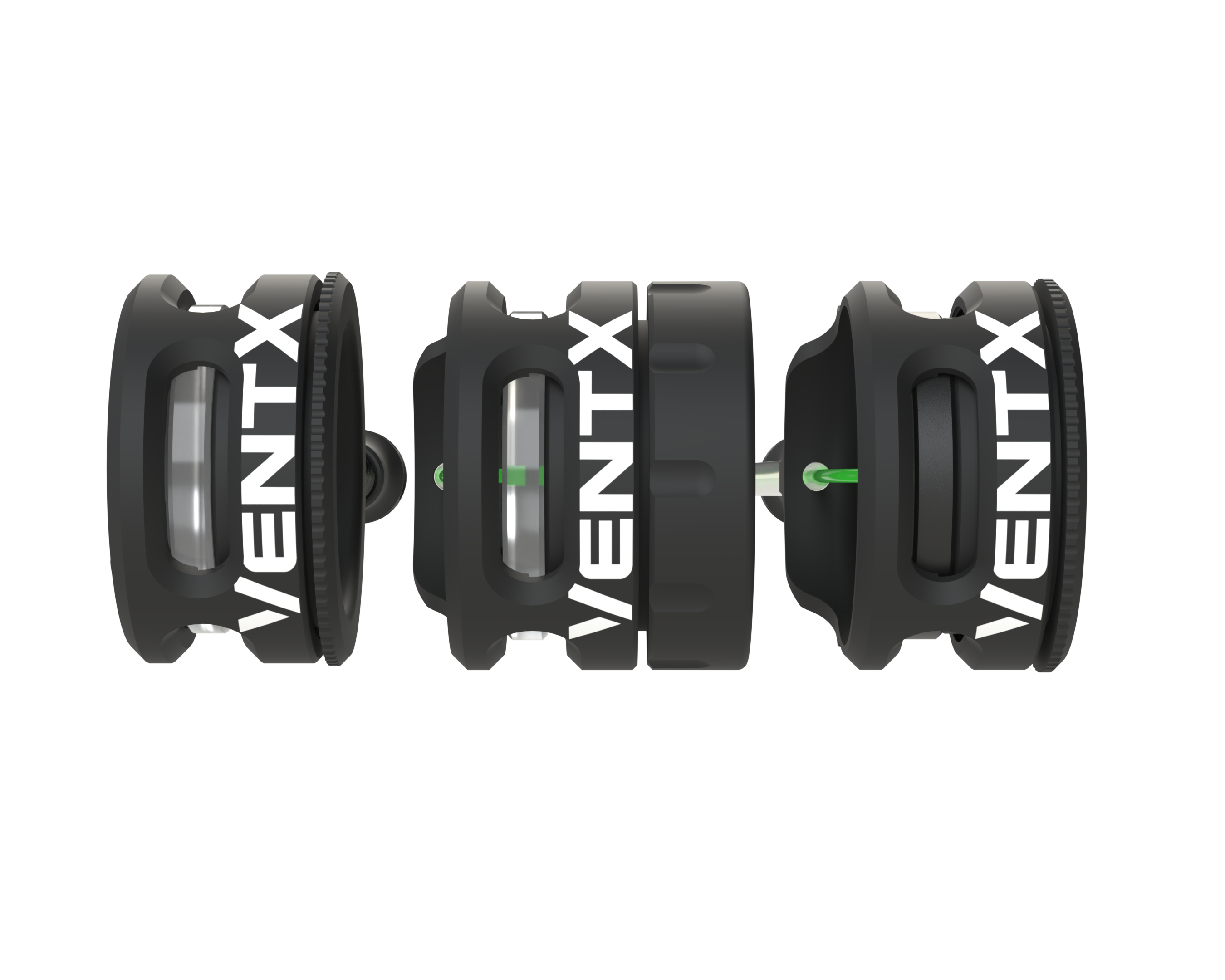

Interchangeable Sunshades
Swap between a 1-step sunshade with white centering ring and a flat MDR sunshade to find the optimal sight picture.

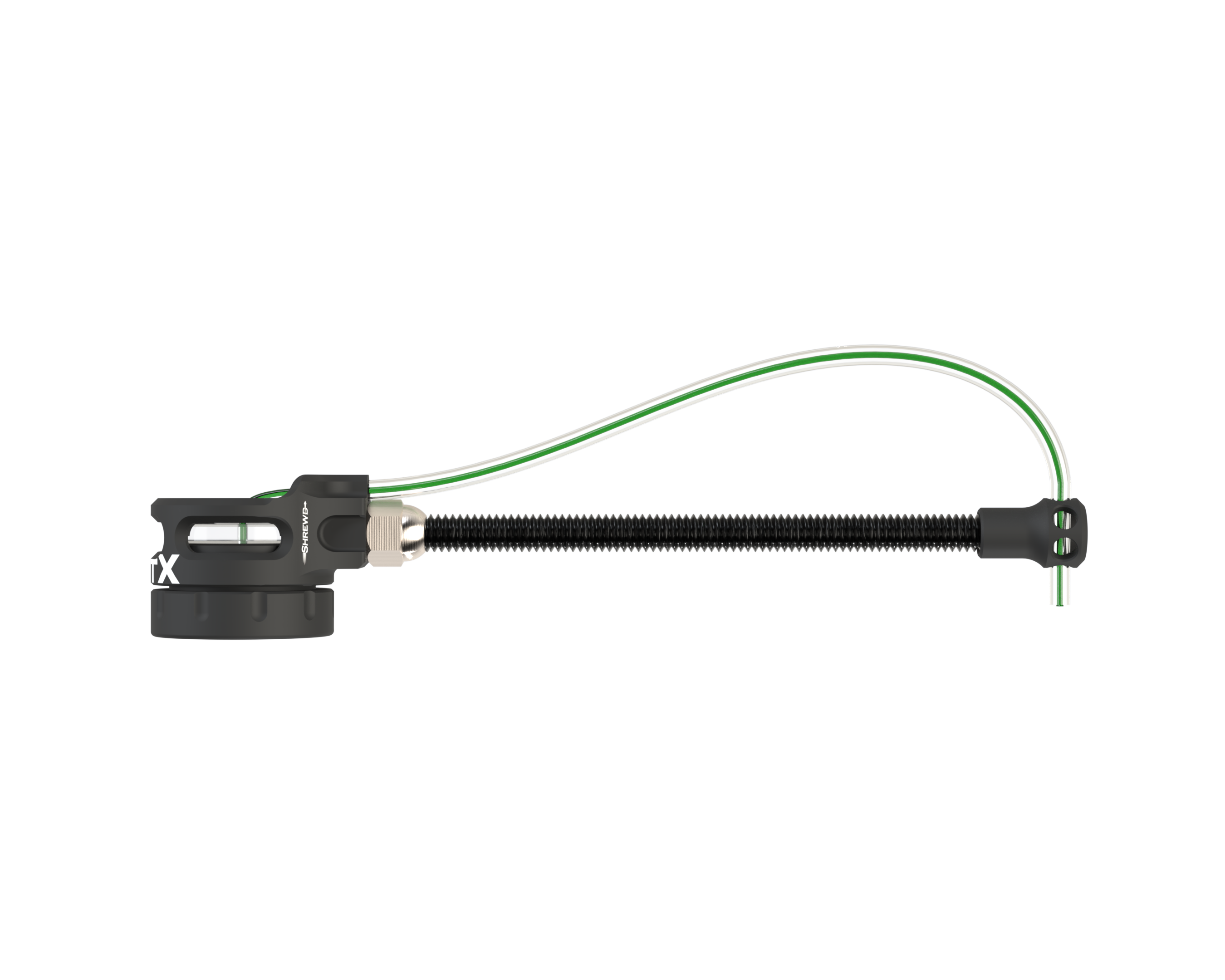

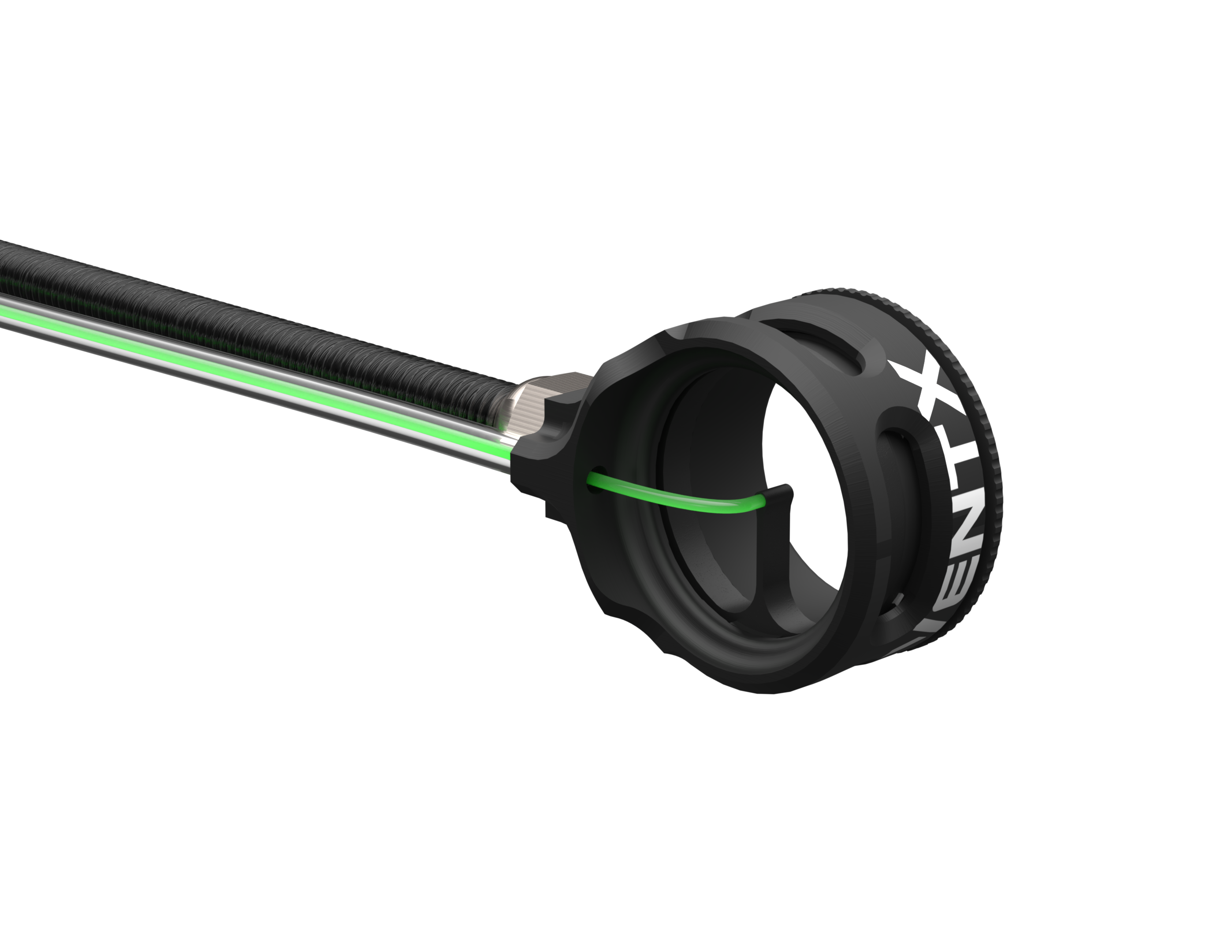

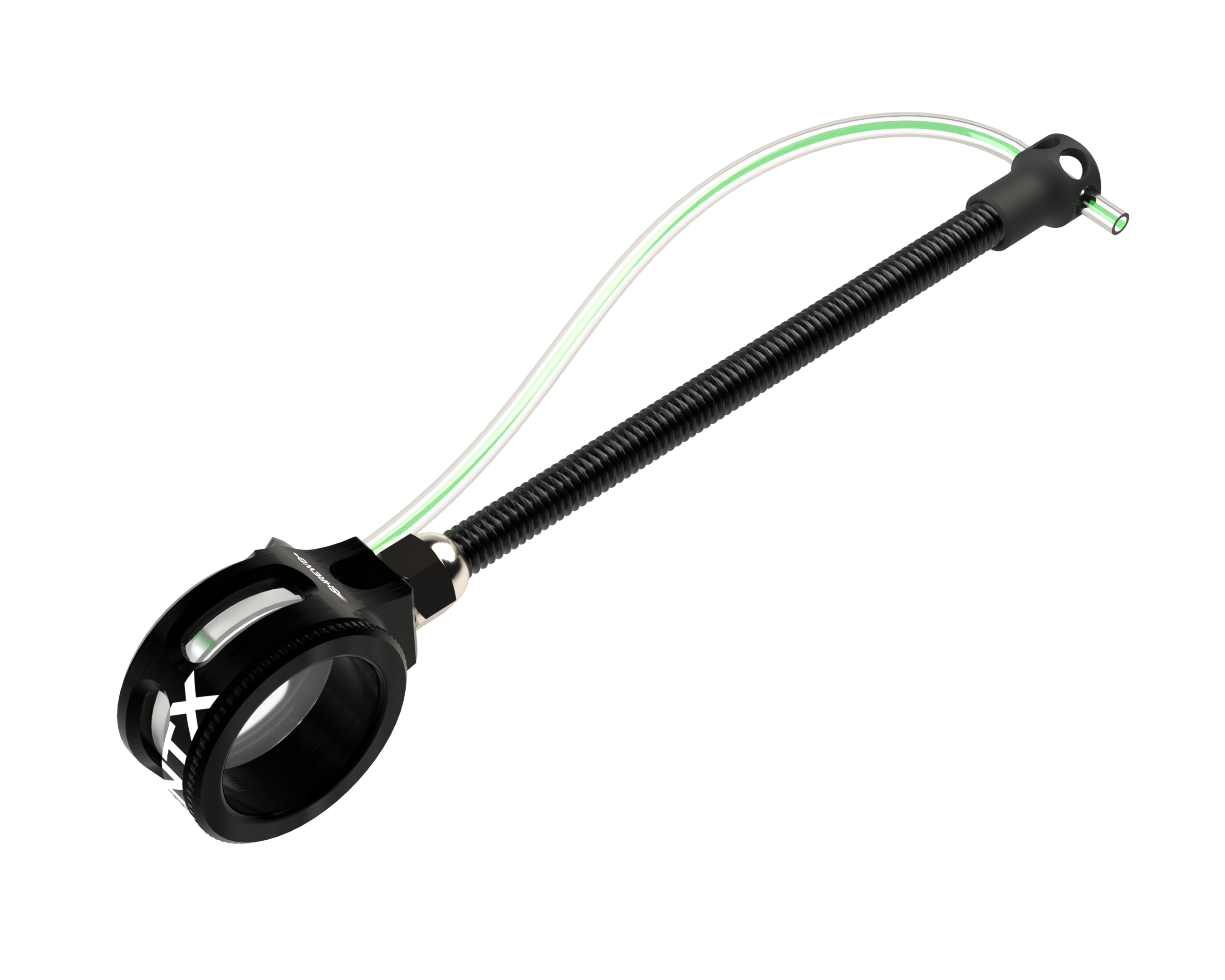

Fiber Channel

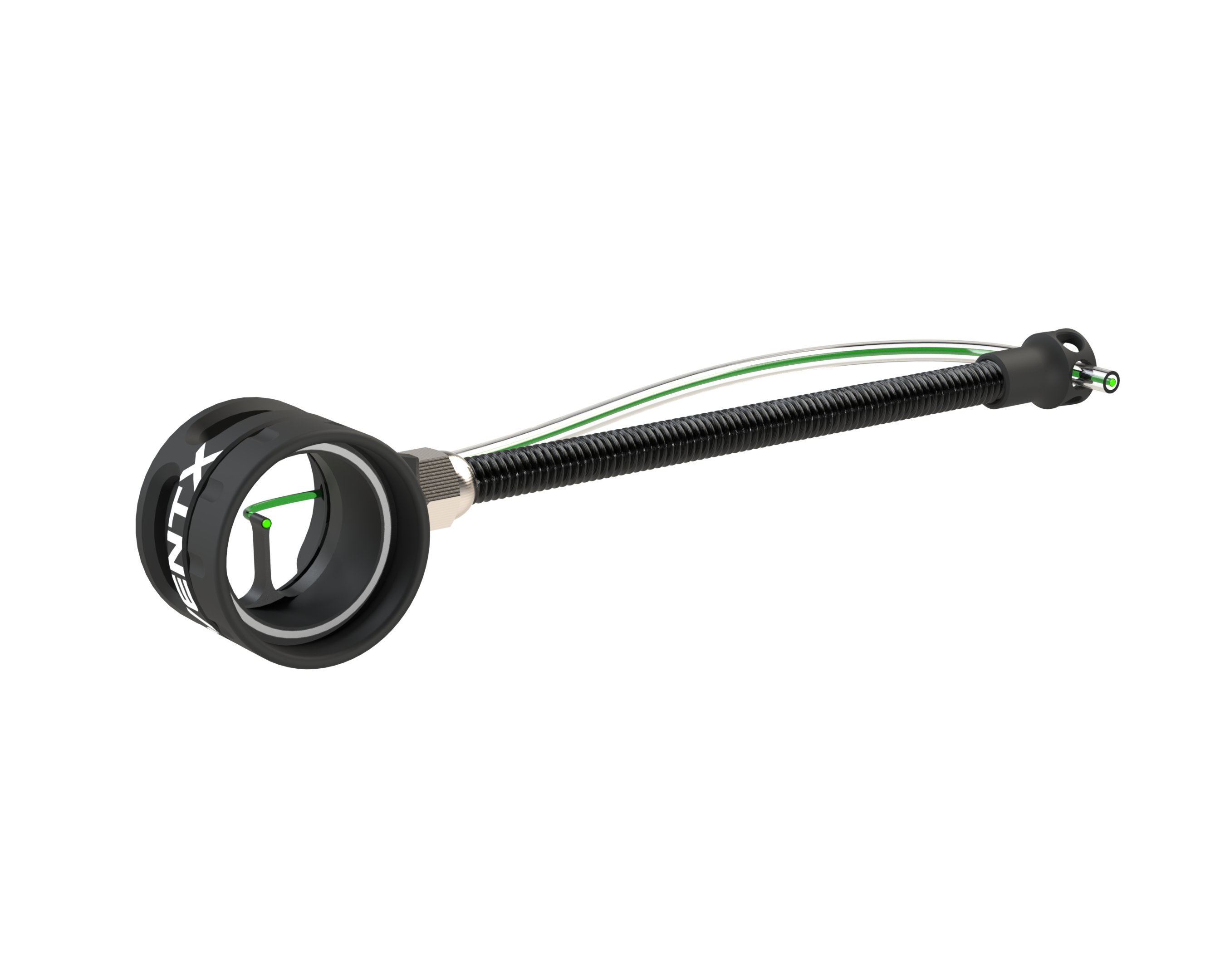

Built into every VentX is a fiber channel that protects the fiber and moves it out of the line of sight ensuring a FITA legal scope.
VentX Tech Specs
Get to know the VentX recurve scope inside and out with the full spec sheet.
VentX Instruction Manual14.5mm
0.57"
20mm
0.78"
8-32 x 3" Threaded Rod
-
16.7mm
.660"
13.2 grams
0.46 ounces
