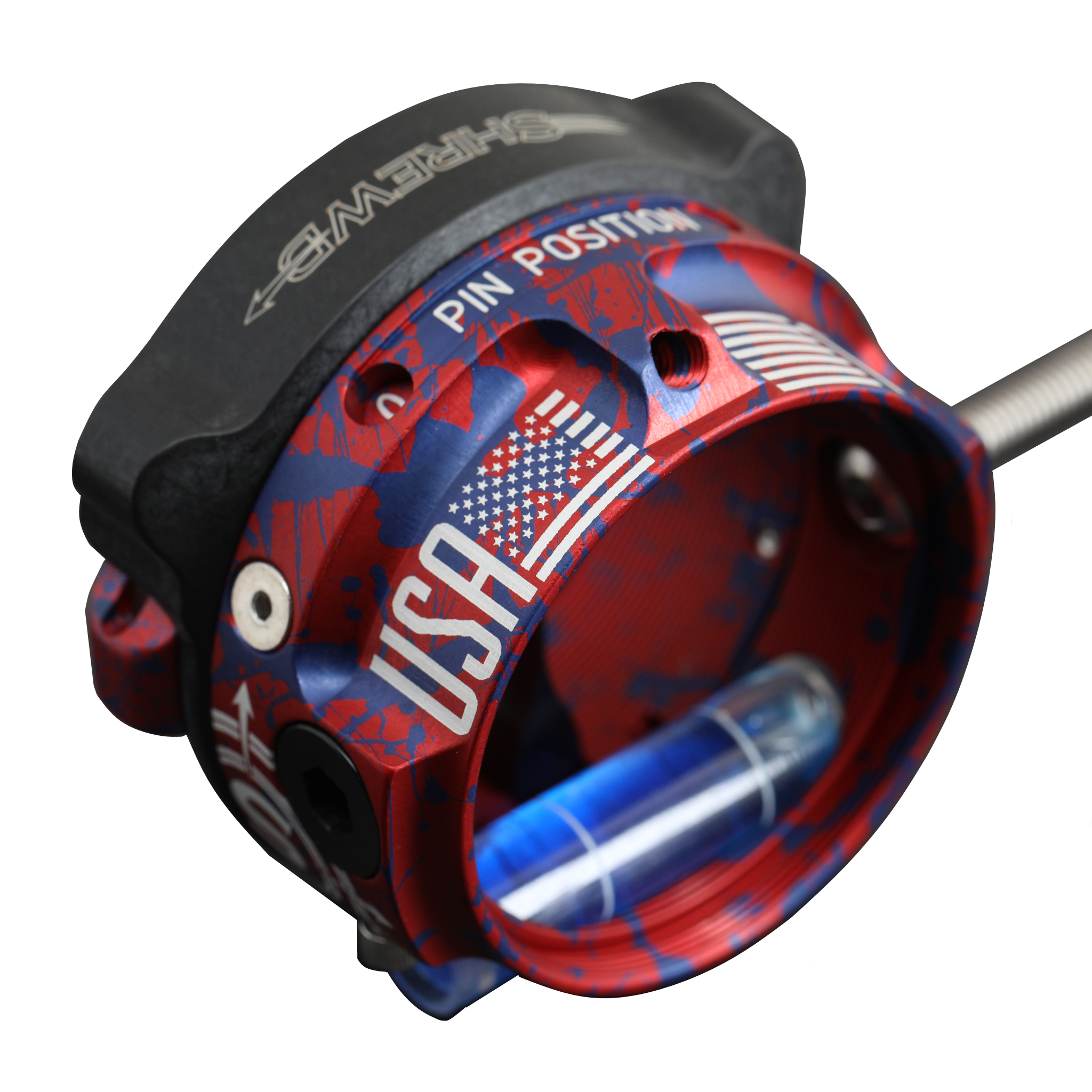

Optum Scope - Patriot Edition - 40/35mm

• THE OPTUM TAKES THE VERSATILITY AND FEATURES SHREWD SCOPES ARE KNOWN FOR TO THE NEXT LEVEL. WITH MORE ADJUSTABILITY THAN ANY OTHER SCOPE IN OUR LINE; THE OPTUM PACKS ALL THE FEATURES OF THE NOMAD PLATFORM INTO AN EFFICIENT AND EASY TO USE PACKAGE. THE HASSLE OF CHANGING PIN POSITIONS, INSTALLING A LIGHT KIT, AND SWAPPING FIBER IS GONE. THE OPTUM SERIES ARE THE EPITOME OF ADJUSTABLE EFFICIENCY.
• AVAILABLE IN A 35MM OR 40MM SCOPE SIZE
• FEATURES:
• ADJUSTABLE FIBER COVER OFFERS PRECISE CONTROL OVER THE PIN BRIGHTNESS
• THREE 8-32 THREADED HOLES ALLOW EASY INSTALLATION OF A LIGHT KIT RIGHT OUT OF THE BOX IN SECONDS
• TWO OF THE LIGHT POSITIONS ILLUMINATE THE FIBER
• ONE LIGHT POSITION ILLUMINATES A DOT ON LENSES OR FIBER IN CENTERED DRILLED LENSES
• 8-32 THREADED LIGHT PORTS ARE COMPATIBLE WITH SCHLITE, LP, AND ZBROS LIGHT SYSTEMS
• EIGHT PIN POSITIONS THAT CAN BE CHANGED IN SECONDS WITH THE OPTUM RING SYSTEM
• PIN POSITION INDICATOR OFFERS A QUICK REFERENCE FOR REPEATABILITY
• ADDITIONAL OPTUM RING SYSTEMS ARE AVAILABLE HERE
• OPTIONAL SUNSHADES THAT CAN BE THREADED ON EITHER SIDE OF THE SCOPE
• CLICK HERE TO SEE THE OPTUM SUNSHADE OPTIONS
• KEYWAY SLOT FOR THE PIN ENSURES IT ALWAYS REMAINS IN PLACE AND ALIGNED CORRECTLY
• 7/16"-20 PLUG CLOSES THE LARGE HOLE TYPICALLY FOUND ON THE SIDE OF SCOPES FOR COMPLETE LIGHT CONTROL
• ADDITIONAL 7/16"-20 PLUGS ARE AVAILABLE HERE
• MOUNTING POCKET ACCEPTS SQUARE AND HEX SCOPE RODS TO PREVENT THE SCOPE FROM ROTATING
• SPECIFIC SCOPE RODS FOR AXCEL®, SPOT HOGG, AND SURE-LOC® ARE AVAILABLE
• BE SURE TO REMOVE THE HEX NUT ON THE 10-32 THREADED ROD BEFORE INSTALLING SCOPE RODS
• SQUARE POCKET MEASURES .314" x .314"
• INCLUDES:
• SCOPE BODY WITH SPLASH ANODIZED FINISH
• OPTUM RING SYSTEM WITH SPLASH ANODIZED FINISH
• TUBING AND FIBER COVER ALREADY INSTALLED
• GREEN, RED, AND BLUE LEVELS
• GREEN, ORANGE, AND BLUE FIBER (IF PIN OPTION IS SELECTED)
• 10-32 X 2" AND 10-32 X 1.25" BUTTON HEAD SCREWS
• 1/16" ALLEN WRENCH
• 7/16"-20 DELRIN PLUG
• MADE IN THE USA
• CLICK HERE FOR PRODUCT INSTRUCTIONS

COMPATIBILITY:

• B3 - REQUIRES THE USE OF THE 10-32 X 1/2" BUTTON HEAD SCREW THAT COMES STOCK WITH THE B3 SIGHT WHEN MOUNTING THE SCOPE.
• AXCEL - CAN MOUNT TO THE STOCK AXCEL SCOPE ROD BUT WILL REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 1/2" SHREWD SCOPE ROD.
• SPOT HOGG - REQUIRES A 3/8" SHREWD SCOPE ROD.
• SURE-LOC - CAN MOUNT TO THE STOCK SCOPE ROD BUT MAY REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 3/8" OR .455" SCOPE ROD DEPENDING ON THE SIGHT MODEL (SEE SCOPE ROD PRODUCT DESCRIPTION).
• SHIBUYA - MOUNTS DIRECTLY TO THE SIGHT WITH THE INCLUDED 10-32 BOLT. NO ADAPTERS ARE NEEDED.

Due to the nature of splash anodizing, every part will vary slightly and no two are identical. The product you receive will not look identical to the images shown but they will be very similar.
