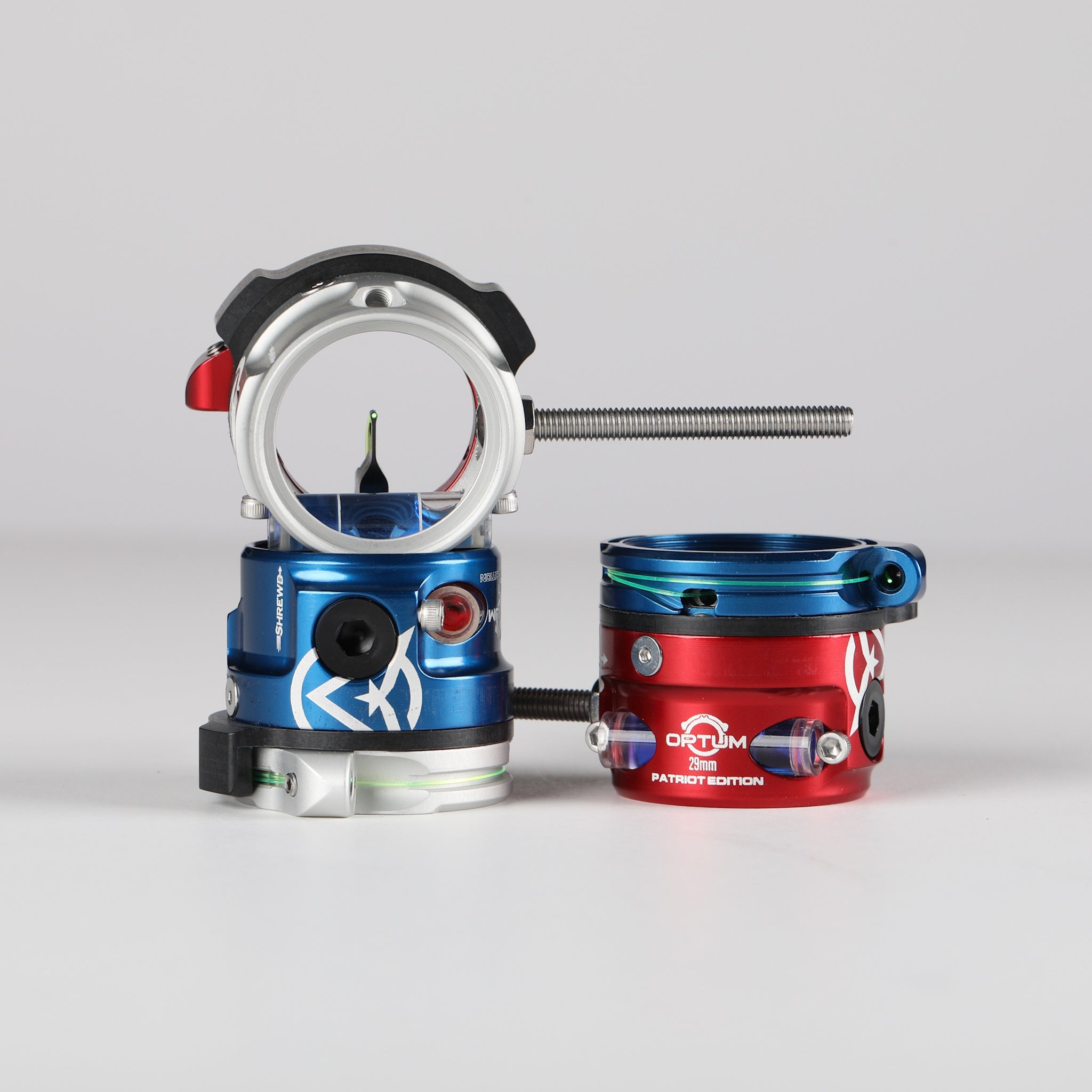

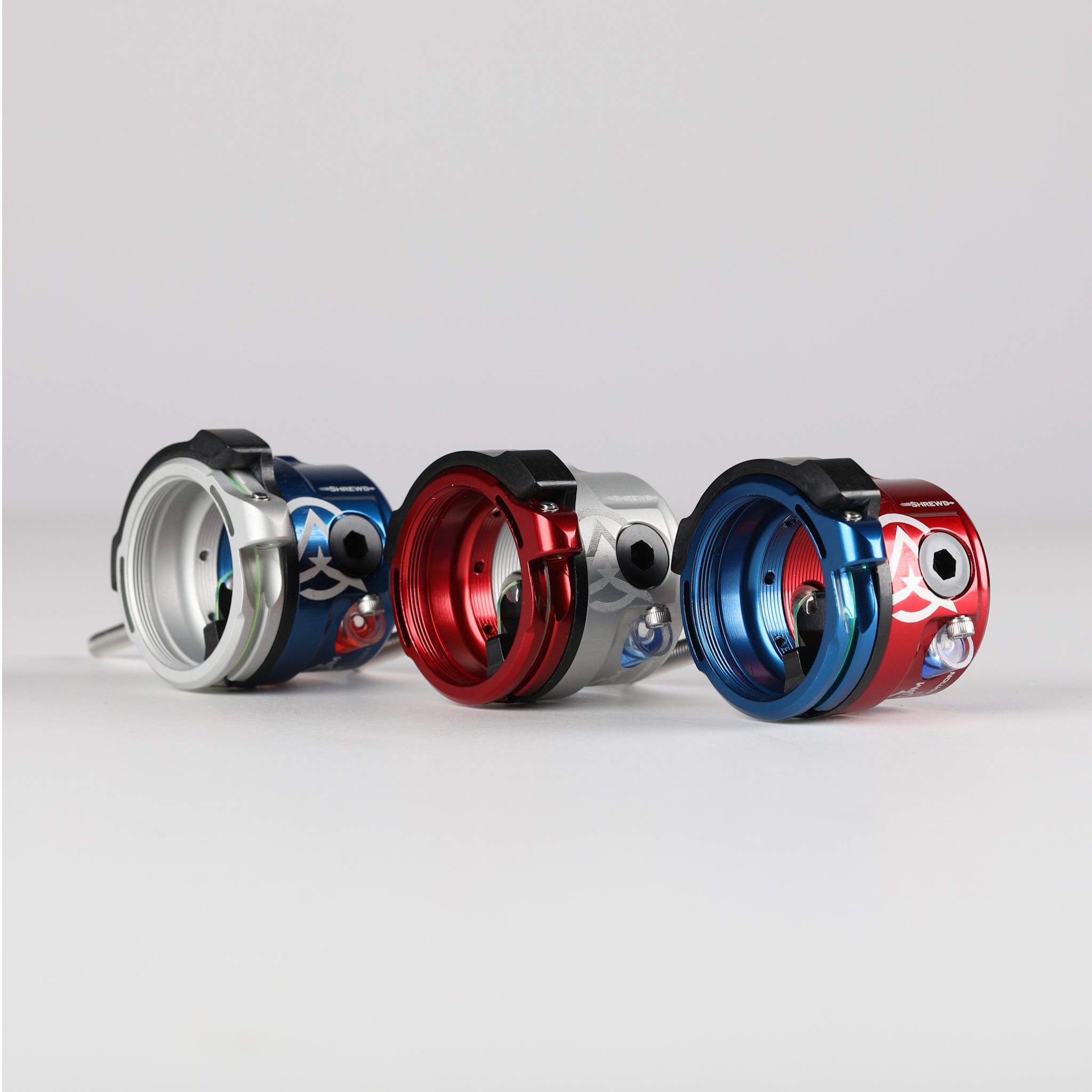

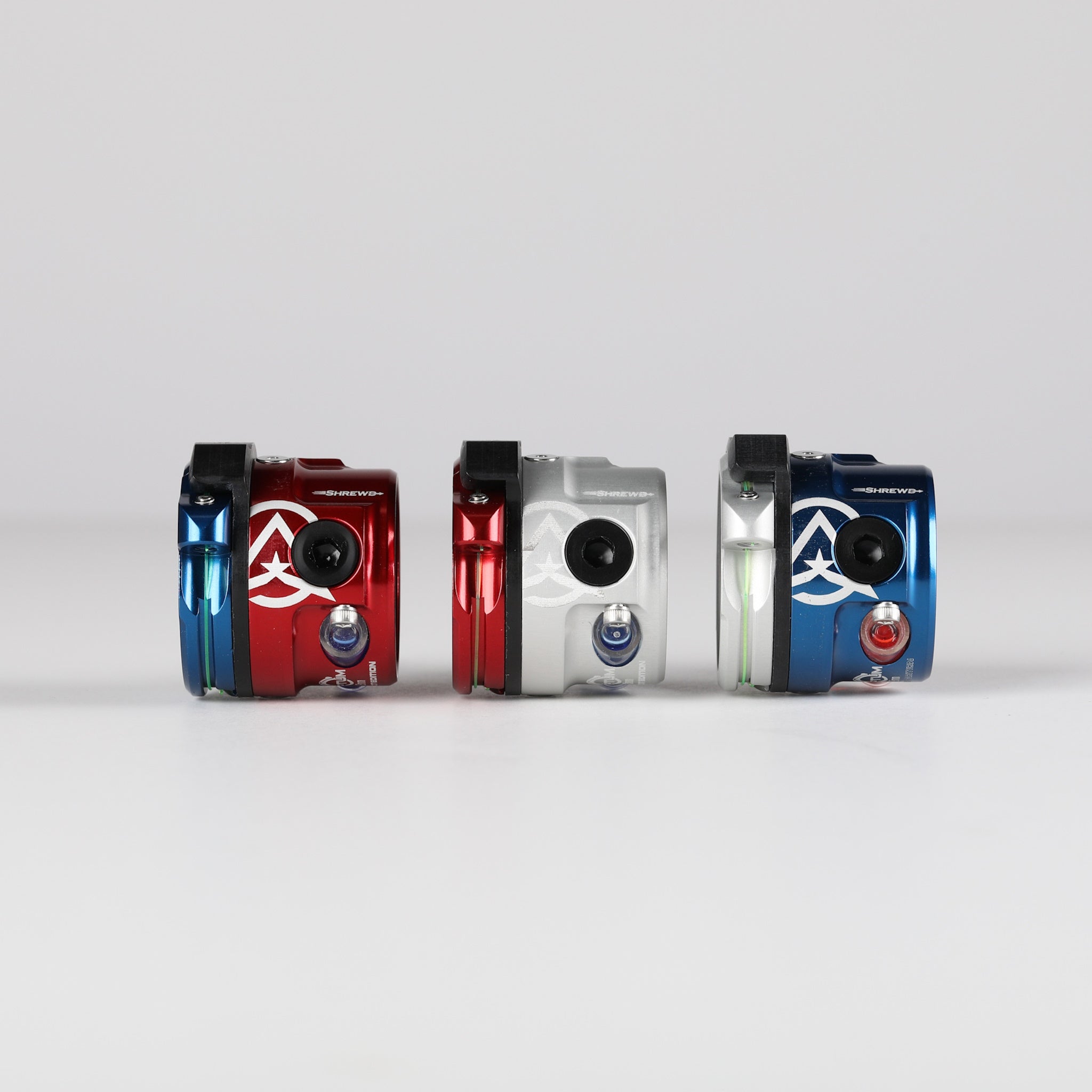

Optum Scope 29mm - 2024 Patriot

The Patriot edition Atlas is a limited edition colorway. Featuring a unique color combination and laser design, the Patriot edition Atlas was made to stand out. This is a limited, one time, production run.

• THE OPTUM TAKES THE VERSATILITY AND FEATURES SHREWD SCOPES ARE KNOWN FOR TO THE NEXT LEVEL. WITH MORE ADJUSTABILITY THAN ANY OTHER SCOPE IN OUR LINE; THE OPTUM PACKS ALL THE FEATURES OF THE NOMAD PLATFORM INTO AN EFFICIENT AND EASY TO USE PACKAGE. THE HASSLE OF CHANGING PIN POSITIONS, INSTALLING A LIGHT KIT, AND SWAPPING FIBER IS GONE. THE OPTUM SERIES ARE THE EPITOME OF ADJUSTABLE EFFICIENCY.
• AVAILABLE IN A 40mm, 35mm, AND 29mm SCOPE SIZE
• FEATURES:
• ADJUSTABLE FIBER COVER OFFERS PRECISE CONTROL OVER THE PIN BRIGHTNESS
• THREE 8-32 THREADED HOLES ALLOW EASY INSTALLATION OF A LIGHT KIT RIGHT OUT OF THE BOX IN SECONDS
• TWO OF THE LIGHT POSITIONS ILLUMINATE THE FIBER
• ONE LIGHT POSITION ILLUMINATES A DOT ON LENSES OR FIBER IN CENTERED DRILLED LENSES
• 8-32 THREADED LIGHT PORTS ARE COMPATIBLE WITH SCHLITE, LP, AND ZBROS LIGHT SYSTEMS
• EIGHT PIN POSITIONS THAT CAN BE CHANGED IN SECONDS WITH THE OPTUM RING SYSTEM
• PIN POSITION INDICATOR OFFERS A QUICK REFERENCE FOR REPEATABILITY
• ADDITIONAL OPTUM RING SYSTEMS ARE AVAILABLE HERE
• OPTIONAL SUNSHADES THAT CAN BE THREADED ON EITHER SIDE OF THE SCOPE
• KEYWAY SLOT FOR THE PIN ENSURES IT ALWAYS REMAINS IN PLACE AND ALIGNED CORRECTLY
• 7/16"-20 PLUG CLOSES THE LARGE HOLE TYPICALLY FOUND ON THE SIDE OF SCOPES FOR COMPLETE LIGHT CONTROL
• ADDITIONAL 7/16"-20 PLUGS ARE AVAILABLE HERE
• MOUNTING POCKET ACCEPTS SQUARE AND HEX SCOPE RODS TO PREVENT THE SCOPE FROM ROTATING
• SPECIFIC SCOPE RODS FOR AXCEL®, SPOT HOGG, AND SURE-LOC® ARE AVAILABLE
• BE SURE TO REMOVE THE HEX NUT ON THE 10-32 THREADED ROD BEFORE INSTALLING SCOPE RODS
• SQUARE POCKET MEASURES .314" x .314"
• INCLUDES:
• SCOPE BODY WITH SPLIT ANODIZED FINISH
• OPTUM RING SYSTEM WITH SPLIT ANODIZED FINISH
• TUBING AND FIBER COVER ALREADY INSTALLED
• GREEN, RED, AND BLUE LEVELS
• GREEN, ORANGE, AND BLUE FIBER (IF PIN OPTION IS SELECTED)
• 10-32 X 2" AND 10-32 X 1.25" BUTTON HEAD SCREWS
• 1/16" ALLEN WRENCH
• 7/16"-20 DELRIN PLUG
• MADE IN THE USA
• CLICK HERE FOR PRODUCT INSTRUCTIONS



COMPATIBILITY:

• B3 - REQUIRES THE USE OF THE 10-32 X 1/2" BUTTON HEAD SCREW THAT COMES STOCK WITH THE B3 SIGHT WHEN MOUNTING THE SCOPE.
• AXCEL - CAN MOUNT TO THE STOCK AXCEL SCOPE ROD BUT WILL REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 1/2" SHREWD SCOPE ROD.
• SPOT HOGG - REQUIRES A 3/8" SHREWD SCOPE ROD.
• SURE-LOC - CAN MOUNT TO THE STOCK SCOPE ROD BUT MAY REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 3/8" OR .455" SCOPE ROD DEPENDING ON THE SIGHT MODEL (SEE SCOPE ROD PRODUCT DESCRIPTION).
